Product Introduction
Adopting high brightness LED chips, good flexibility, linear luminous, no lighting spot, no shadow, 140° beam angle; various applications, such as home decorations(like kitchen, bedroom and dining room), furnitures, hotels, restaurants, buildings and advertisements; low power - 12W/m, better heat dissipation, high CRI, easy installation, cuttable and joinable.
Product features
◆ 140° beam angle ◆ Customized is available ◆ Luminance is uniform and soft ◆ can be instead of 2216 LED strips ◆ 50M/Roll is available if you cut to sell or install ◆ Compatible with aluminium profiles, no lighting dots and dark space

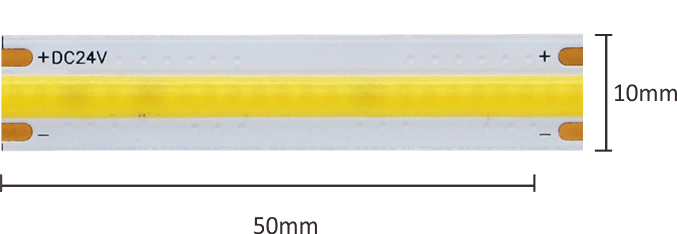

Dimensions
IP Rating Available
IP20
Bareboard
IP65
Silicone Glue Coating
IP67
Silicone Extruded Sleeving
IP68
Full Silicone Extruded
Electrical Parameters
| Light Source | LED Qty | Input Voltage | Power | PCB Width | Beam Angle | Packing | Power Feed System |
| COB | 480leds/m | DC24V | 12W/m | 10mm | 140° | 5M/Roll | One Side or Two sides |
| CCT | Ra | CRI | Effi. | Flux | ERP |
| 2700K | >83 | >80 | 87Im/W | 1044Im/m | F |
| 3000K | >85 | >82 | 90Im/W | 1075Im/m | F |
| 4000K | >85 | >81 | 96Im/W | 1088Im/m | F |
| 6500K | >85 | >80 | 100Im/W | 1210Im/m | F |
| 2700K | >93 | >91 | 68m/W | 805Im/m | G |
| 3000K | >93 | >91 | 70Im/W | 820Im/m | G |
| 4000K | >94 | >93 | 79Im/W | 940Im/m | G |
| 6500K | >94 | >93 | 81Im/W | 1000Im/m | G |
| 2700K | >97 | >96 | 63Im/W | 715Im/m | G |
| 3000K | >97 | >95 | 68Im/W | 822Im/m | G |
| 4000K | >97 | >95 | 75Im/W | 873Im/m | G |
| 6500K | >97 | >95 | 76Im/W | 883Im/m | G |
Application Scenarios
Mounting
Not sure how to install our products? Don't be nervous! We have full installation tutorial videos for vour reference
