PRODUCT

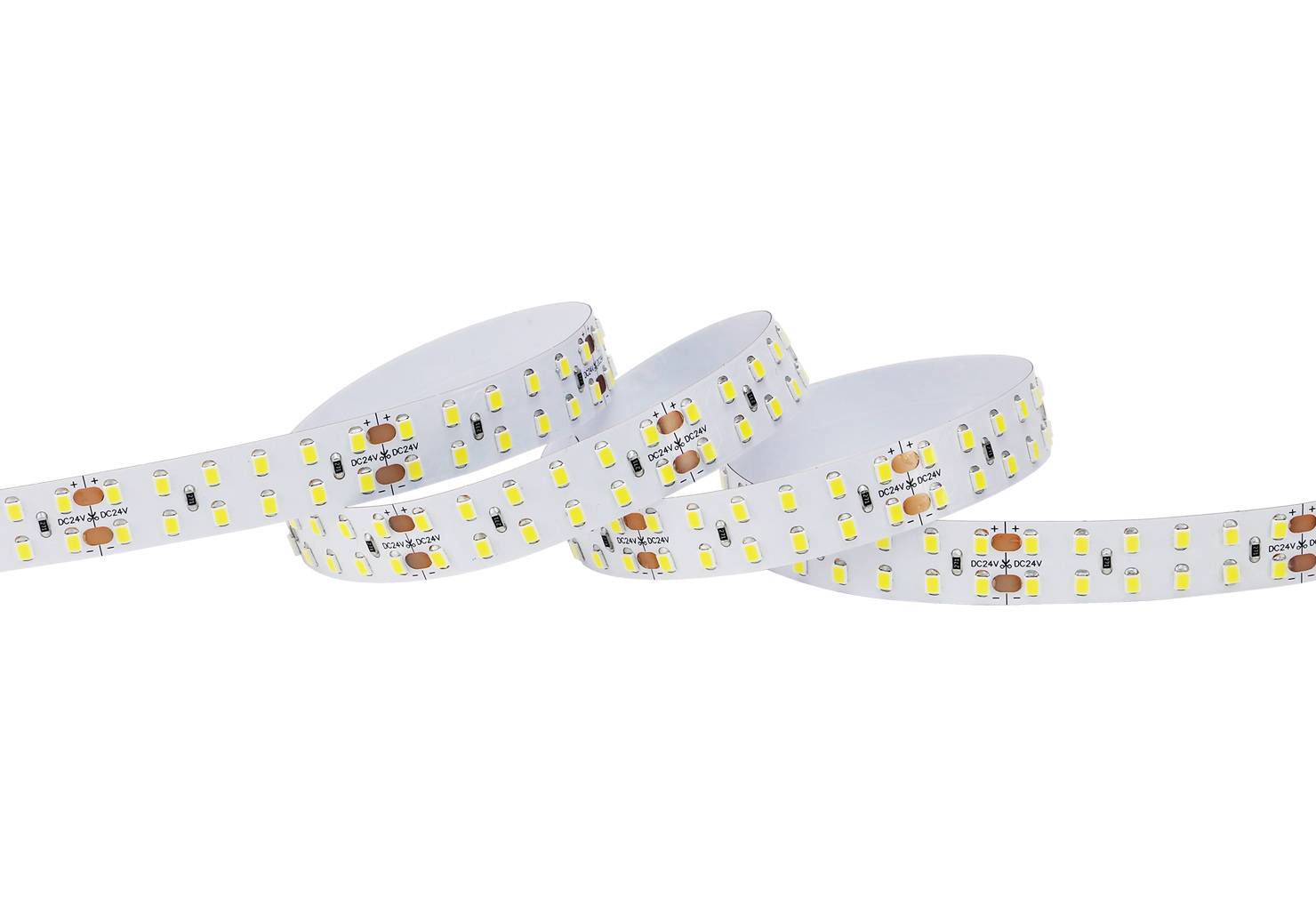

YF-2835W-240-15-24-P0-V1
Product Introduction
Adopting high brightness LED chips, much cheaper, can be instead of 3528 LED strips; various applications, such as home decorations(like kitchen, bedroom and dining room), hotels, restaurants, buildings and advertisements; low power - 24W/m, better heat dissipation, high CRI, easy installation, cuttable and joinable.
Product features
◆ SDCM<3 ◆ Customized is available ◆ Luminance is uniform and soft ◆ 50M/Roll is available if you cut to sell or install ◆ Compatible with aluminium profiles, no lighting dots and dark space
Dimensions
IP Rating Available
IP20
Bareboard
IP65
Silicone Glue Coating
IP67
Silicone Extruded Sleeving
IP68
Full Silicone Extruded
Electrical Parameters
| Light Source | LED Qty | Input Voltage | Power | PCB Width | Beam Angle | Packing | Power Feed System |
| SMD 2835 | 240leds/m | DC24V | 24W/m | 15mm | 130° | 5M/Roll | One Side or Two Sides |
| CCT | Ra | CRI | Effi. | Flux | ERP |
| 2700K | >82 | >80 | 95Im/W | 2256Im/m | F |
| 3000K | >86 | >83 | 97Im/W | 2315Im/m | F |
| 4000K | >85 | >82 | 106Im/W | 2518Im/m | F |
| 6500K | >85 | >82 | 100Im/W | 2382Im/m | F |
| 2700K | >97 | >96 | 74m/W | 1706Im/m | G |
| 3000K | >96 | >95 | 76Im/W | 1835Im/m | G |
| 4000K | >97 | >95 | 81Im/W | 1938Im/m | G |
| 6500K | >97 | >95 | 88Im/W | 1997Im/m | F |
Application Scenarios
Mounting
Not sure how to install our products? Don't be nervous! We have full installation tutorial videos for vour reference
